Description
| Brand | Vanguard |
|---|---|
| Manufacturer Part Number | RD-25-370 325P256H37M26A4ZSX |
| Cross Reference (Fit/Form/Function) | |
| Capacitance | 25.0 uF |
| Working Voltage | 370 VAC |
| Frequency | 50/60 Hz |
| Working Temperature Range | +70°C |
| Type | Run Capacitor |
| Connection | 2 Posts Four 1/4” male spade terminals on each post |
| Resistor | None |
| Construction | Round Aluminum Case |
| Certifications/Approvals | UL Approved |
| Distance Between Terminals | 0.812″ |
| UPC | None |
| Product Origin (COO) | Mexico |

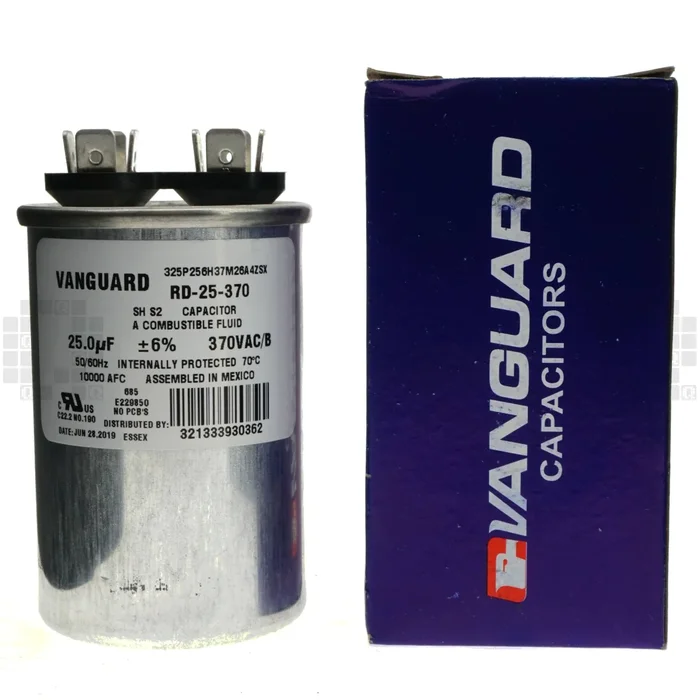

| Product Label | Vanguard 325P256H37M26A4ZSX SH S2 Capacitor A Combustible Fluid 25.0 uF +/-6% 370VAC/B 50/60Hz Internally Protected 70°C 10000 AFC Assembled in Mexico No PCB’s |
| Package Label | RD-25-370 25.0 uF 370VAC |
| Notes | An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return. |
| Product Color | Silver |
|---|---|
| Product Shape | Cylinder |
| Product Dimensions | 1-3/4″ Diameter 2-7/8″ High |
| Product Weight | 6 oz |
| Package Dimensions (LxWxH) | 1.88″ x 1.88″ x 3.50″ |
| Package Weight | 6 oz |
